Connecticut Screen Works®

Simplicity® Screens

Installation instructions

Several installation options, with measuring instructions, are listed below in PDF format. These are by no means the only way to install Simplicity® panels, simply the most common. Your application may require a combination of methods, or others not detailed.

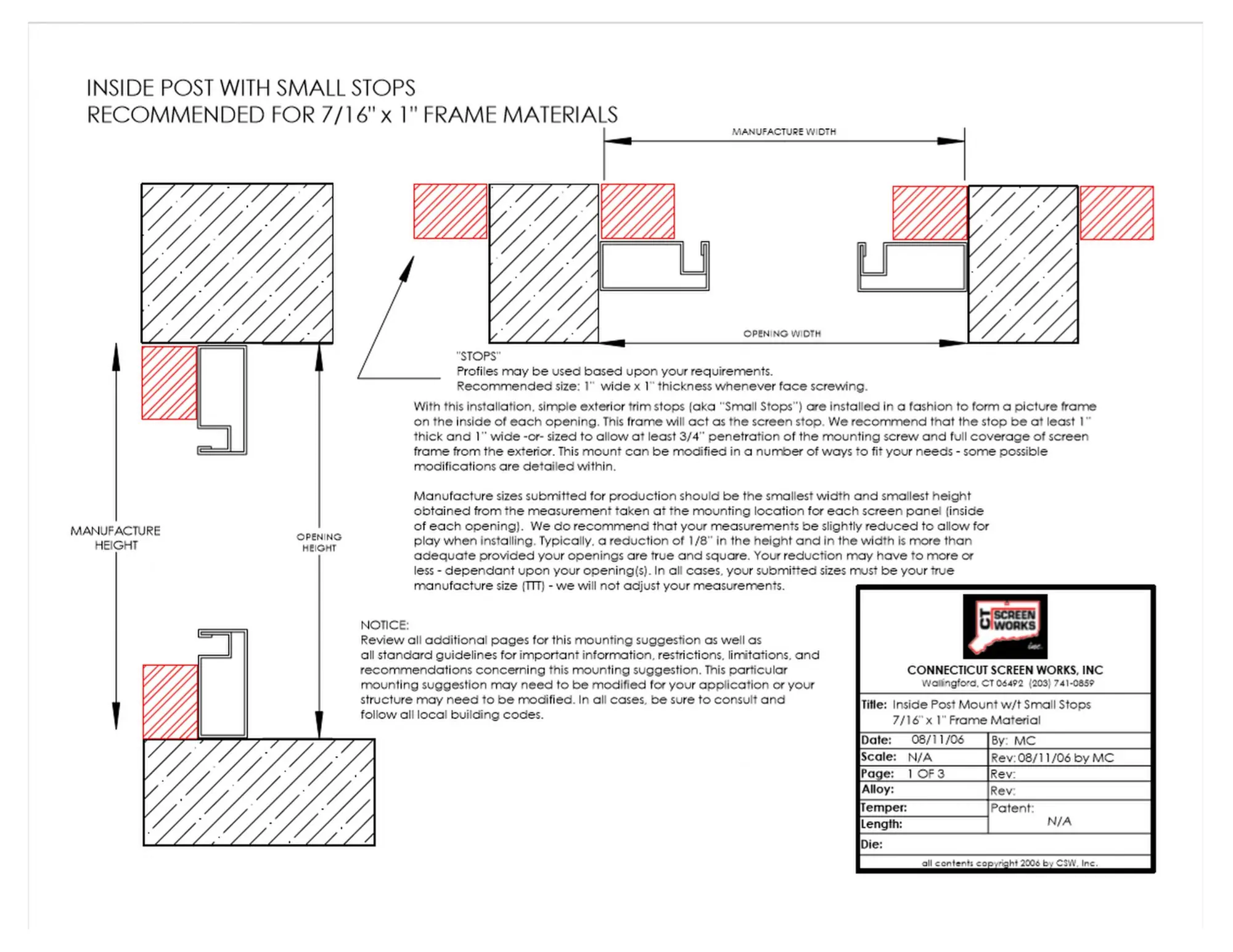

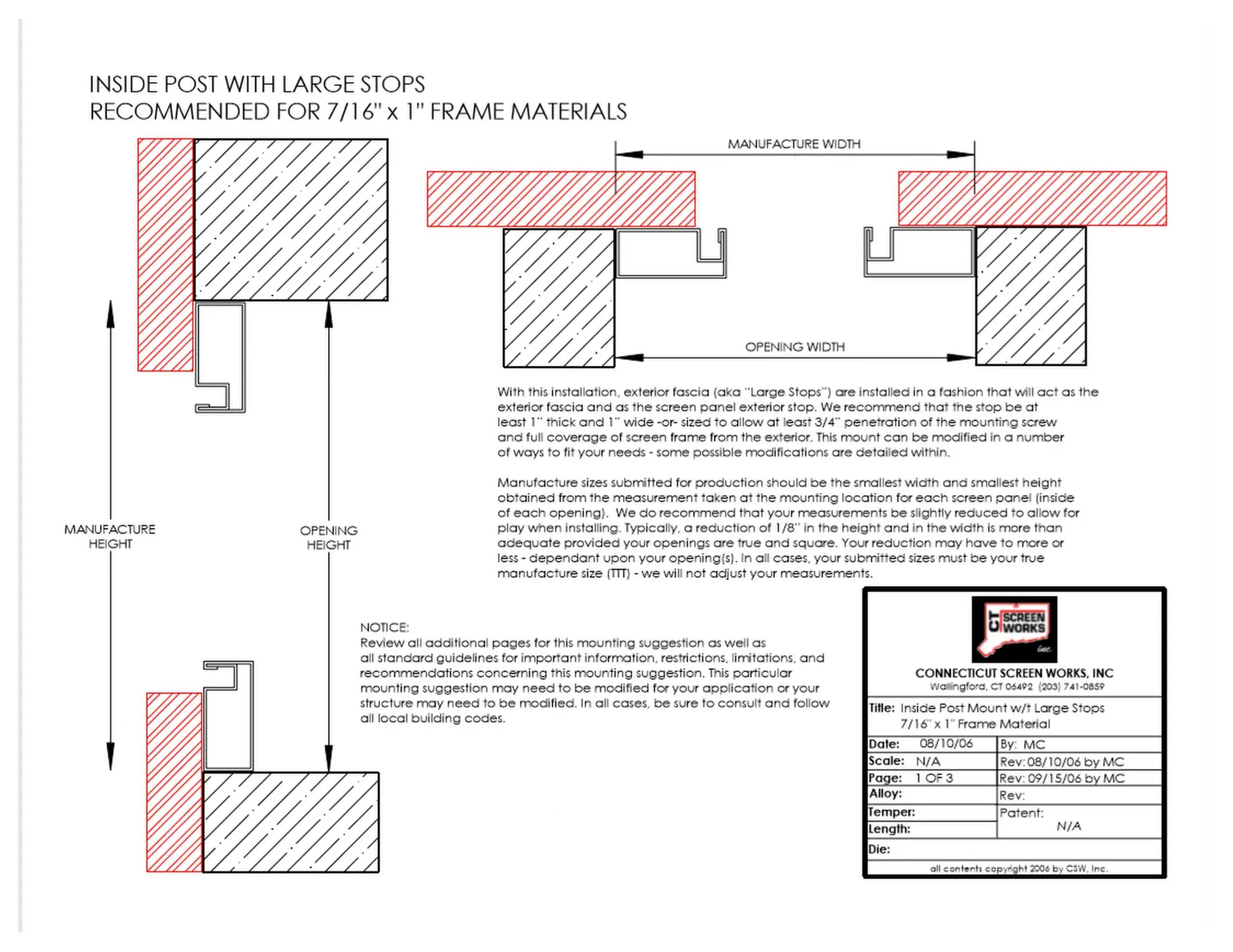

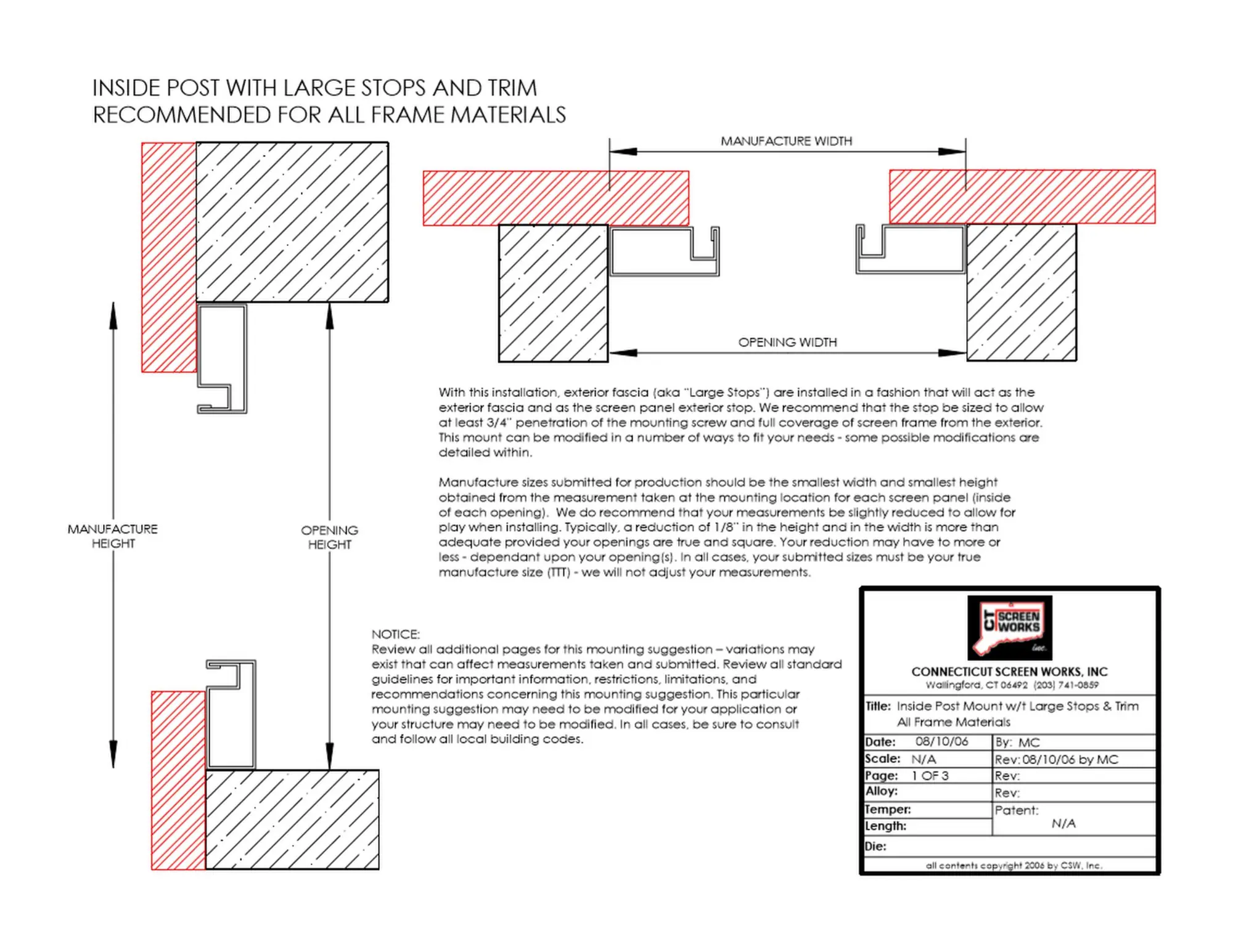

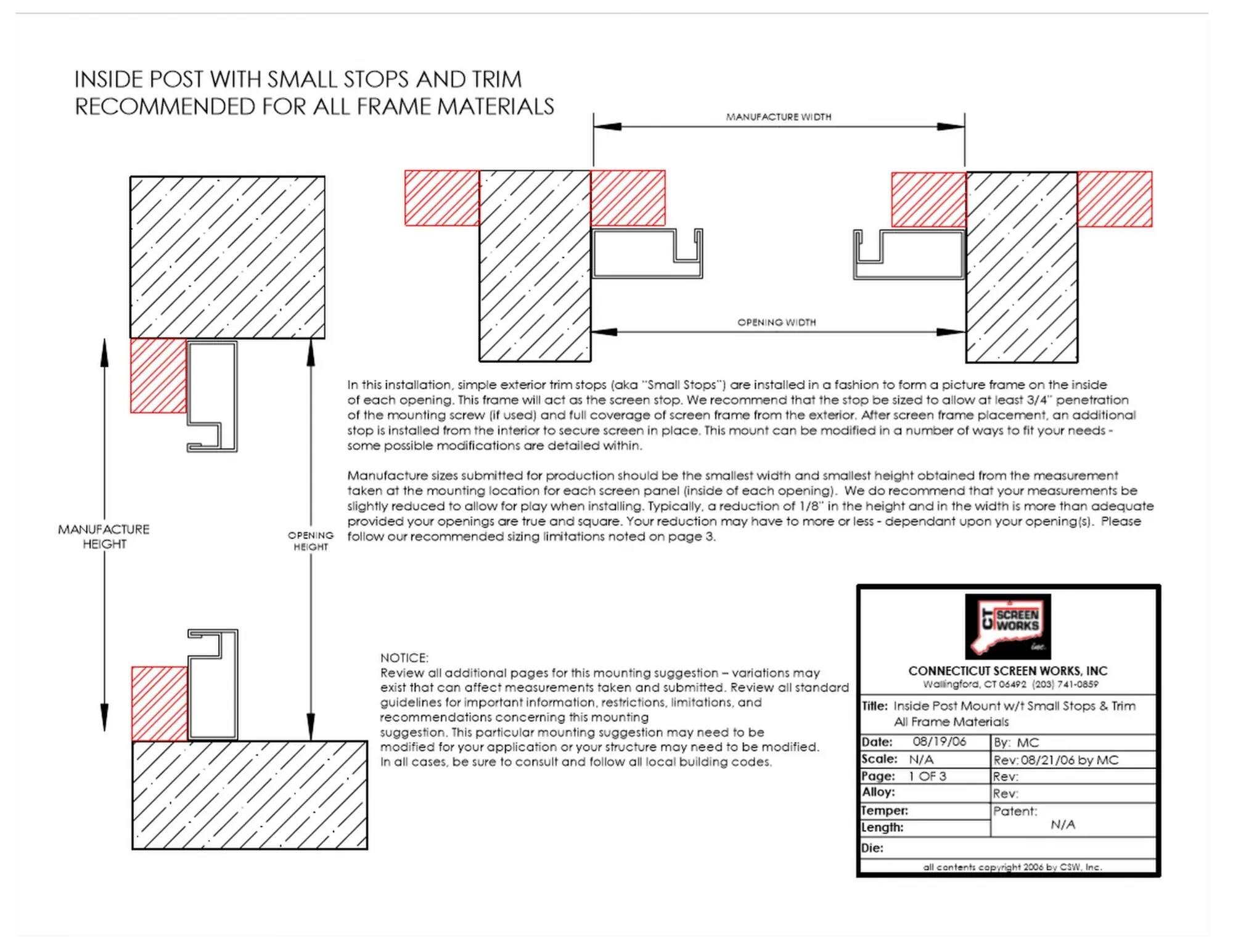

01Inside the opening

Mounting screens inside of opening

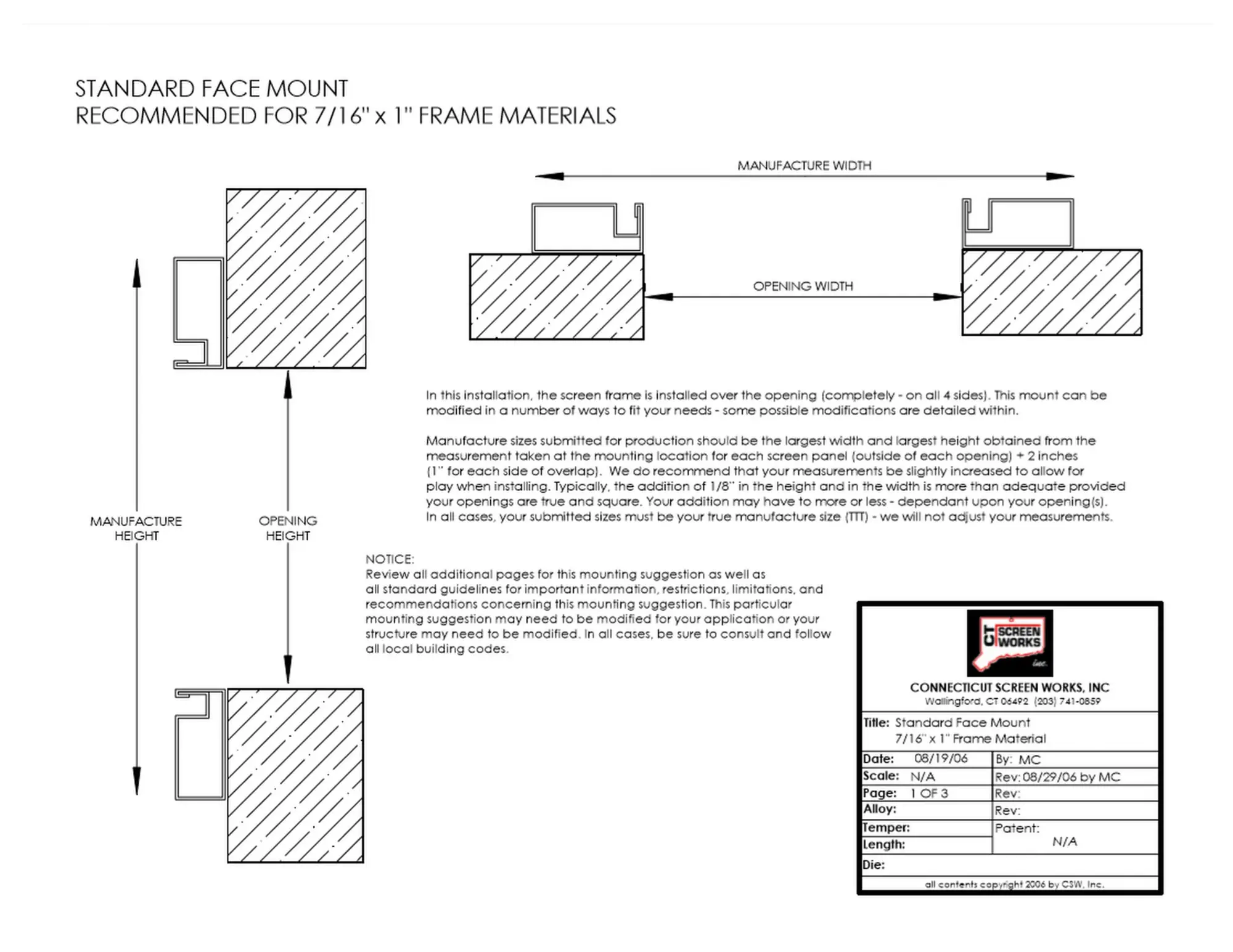

02Over the opening

Mounting screens over opening

03Seasonal mounting

Hardware for off-season removal.

If you intend to mount your screens for seasonal usage, consider using one, or a combination, of our mounting hardware choices instead of a semi-permanent installation. It should make seasonal close-up easier.

Hardware usage is not recommended for year-round installations unless you have installed a sufficient amount to withstand off-season conditions.

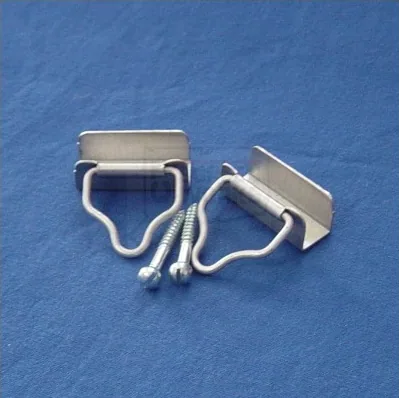

  • Simplicity bail latch mounting hardware

    Bail latch

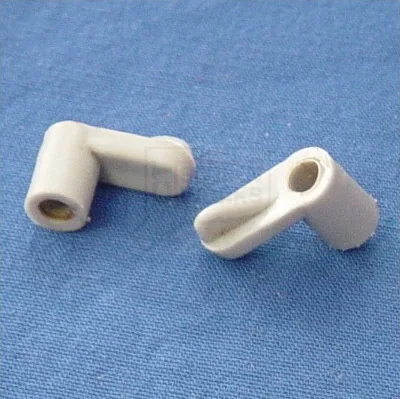

  • Simplicity plastic twist lock mounting hardware

    Plastic twist lock

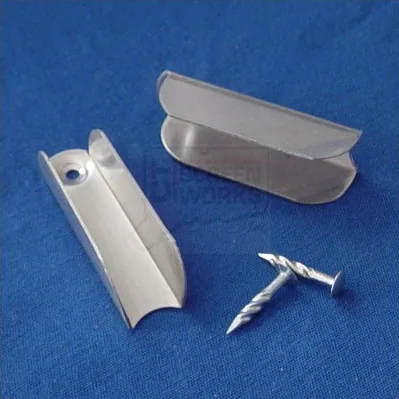

  • Simplicity hanger mounting hardware

    Hanger

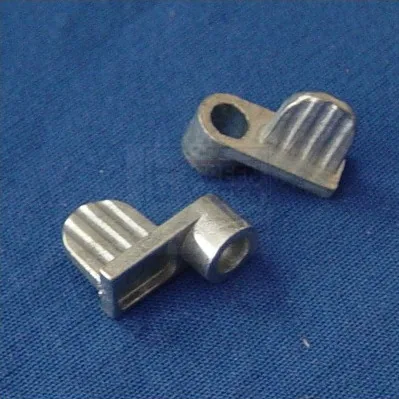

  • Simplicity cast twist lock mounting hardware

    Cast twist lock

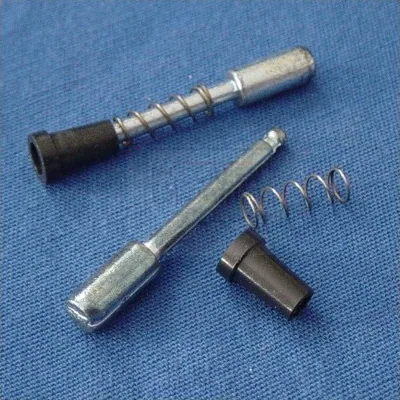

  • Simplicity pull latch mounting hardware

    Pull latch

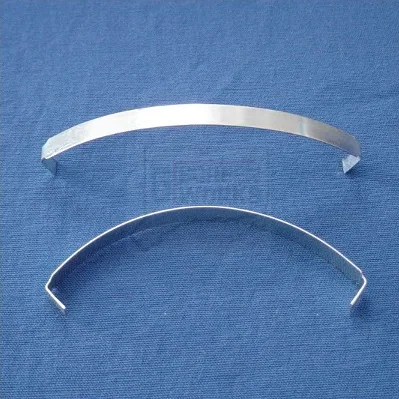

  • Simplicity spring mounting hardware

    Spring
