01The frame
Roll formed, square cut corners.

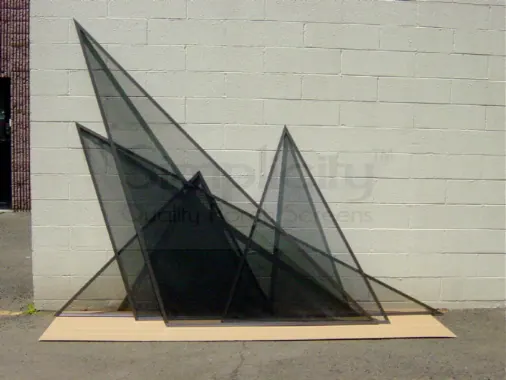

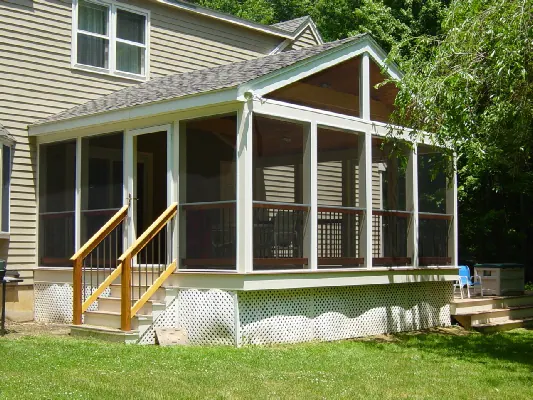

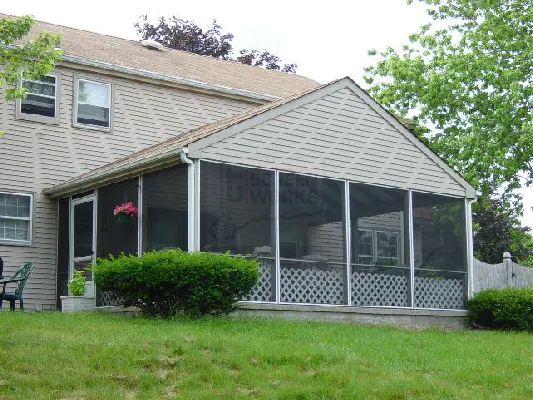

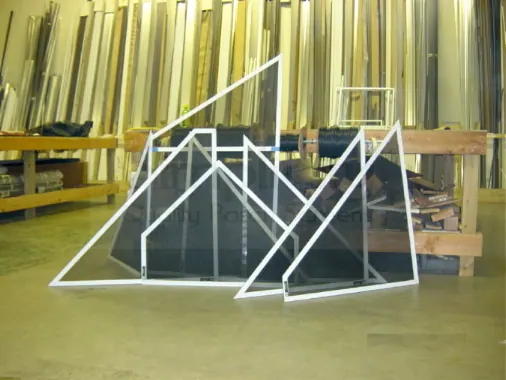

Simplicity® is best suited for insert style porch, patio and deck screen projects, but it can also be used as an entry level panel screening option. It is well suited for triangles, trapezoids and other odd shapes, and is a good choice for applications where job site fabrication is required.
Simplicity® is extremely versatile, has unlimited special use applications, and offers good quality at an affordable price.
Sizing

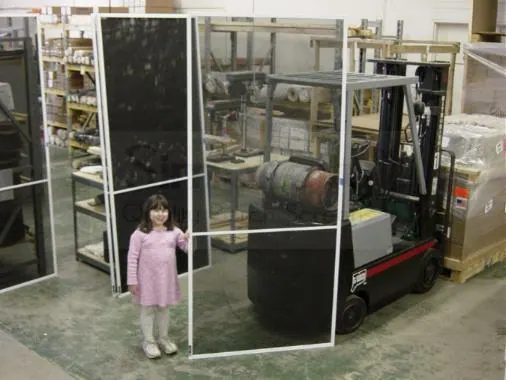

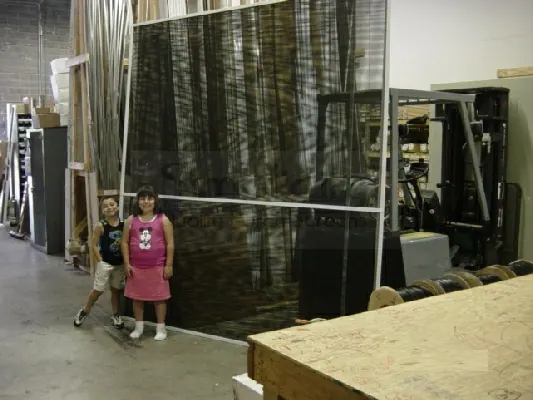

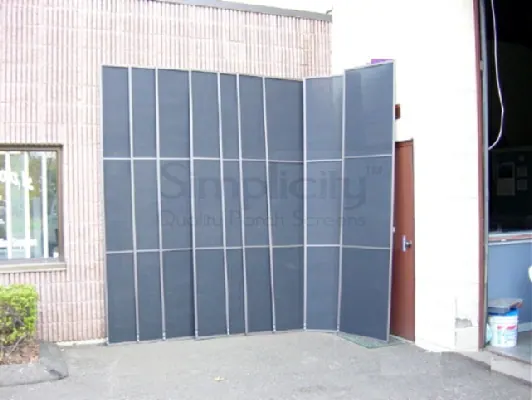

Best suited for inserts up to 96 UI with full trim installations. Used as a screen panel, the maximum recommended manufacture size is 156 UI. The closer you are to (and the more you exceed) the maximum recommended UI size, the more flexible the frame will be. The larger the panel, the more secure the installation must be.
02Finishes
Mill, bronze, white and tan.
Mill
Bronze
White
Tan
03Support bars
Structural, not decorative.
Support bars for Simplicity® screens are structural. This results in a substantially sturdier frame, and they are recommended in any screen panel with a height or width over 48". The bar should run parallel to the shortest dimension and sit at approximately 1/3 the distance of the longest dimension. The standard location is 36" up from the base, typical for most porch, patio and deck applications.
- Recommended over
- 48" H or W
- Orientation
- Parallel to shortest
- Standard position
- 36" up from base
